APPLICATION
Ships
Ship vibration can exacerbate the breaking and irregularity of the stern waves, thereby increasing wave-making resistance. At the same time, vibration is also an important cause of navigation noise. After vibration isolators effectively reduce ship vibration, they help to improve the stern flow field, reduce wave-making resistance and navigation noise, and improve the propulsion efficiency and economy of the ship.

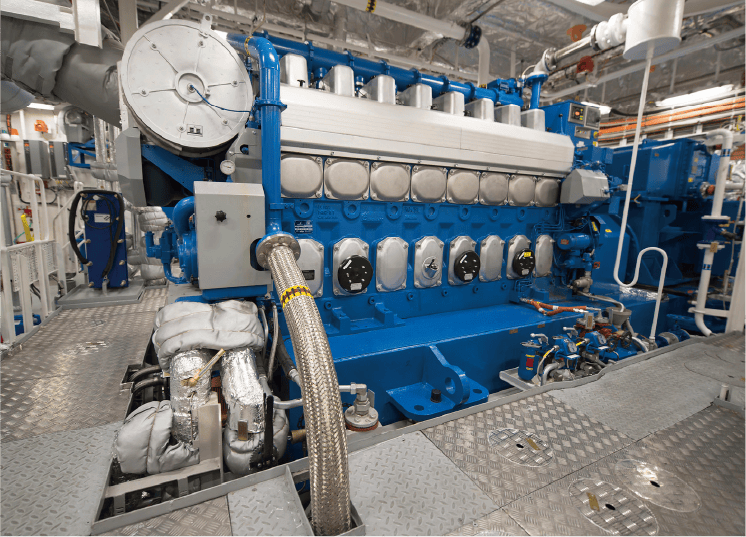

The main engine of a ship generates periodic excitation forces during operation. These forces are transmitted through the ship’s structure, causing the ship to vibrate. Installing vibration isolators between the main engine and its base can effectively isolate the vibration generated by the main engine and reduce the transmission of vibration to the ship’s hull.
For the ship’s propulsion system, such as the propeller, it generates uneven hydrodynamic loads when working, which can cause vibration in the shafting system. Installing vibration isolators at the support locations of the shafting system can attenuate the vibration of the shafting system, improving the stability and reliability of the propulsion system.

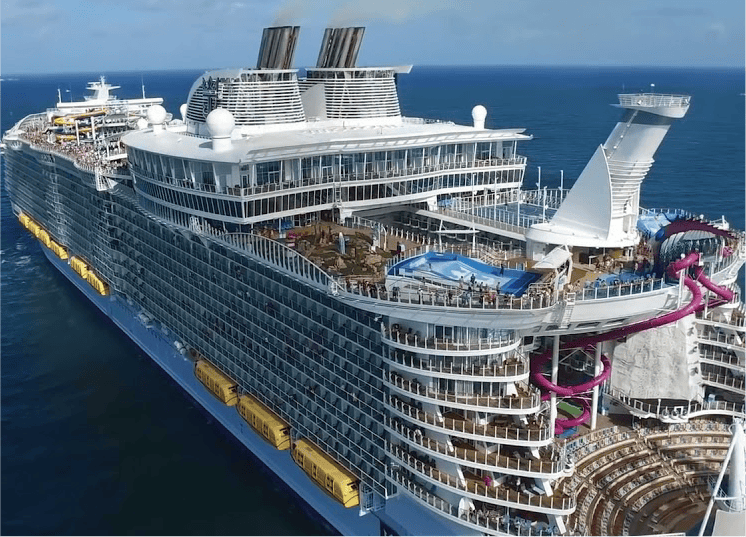

During navigation, the ship’s upper deck is subjected to wave forces, which can cause it to sway and vibrate. Installing vibration isolators at the connection points between the upper deck and the main hull can reduce the impact of wave forces on the upper deck, decrease the vibration and noise in the living and working areas, and improve the comfort of the crew and passengers.
Continuous vibration and impact subject the ship’s hull structure to alternating stress. Over the long term, this can easily lead to fatigue cracks in the hull structure, affecting the safety and service life of the ship. By using vibration isolators to reduce vibration transmission, the stress level of the hull structure can be lowered, reducing structural fatigue damage.

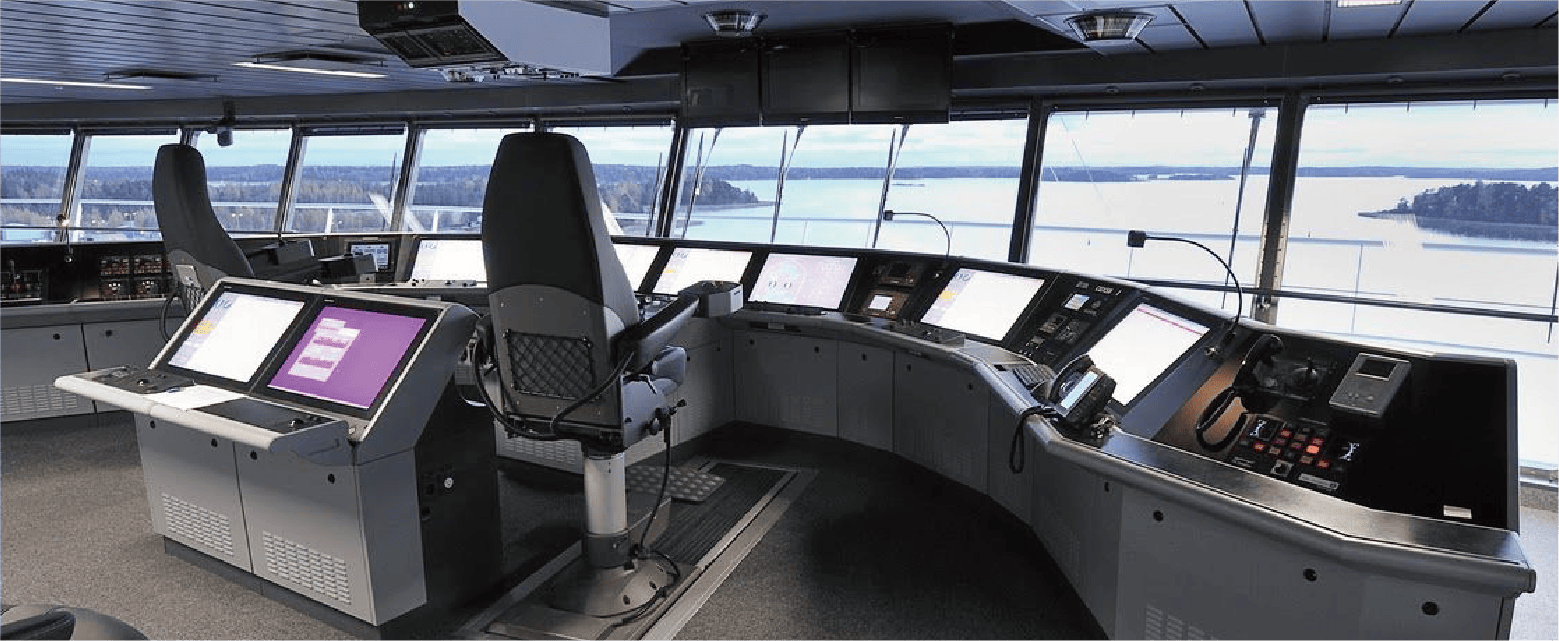

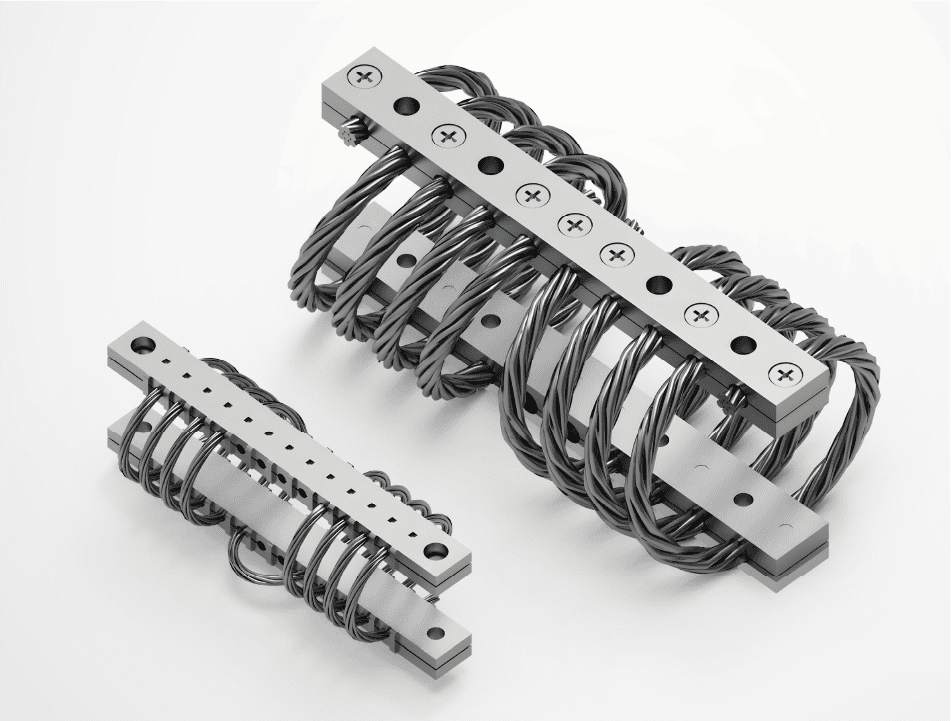

Ships are equipped with a large number of precision instruments and equipment, such as navigation and communication equipment, which are very sensitive to vibration and impact. Steel wire rope vibration isolators can provide vibration isolation protection for these devices, preventing damage or performance degradation caused by ship vibration and ensuring their normal operation.
BLOG
🚚 Shipment Update | Ceramic Silicone Rubber Pads for New Energy Applications
2026-04-16
We are pleased to announce the shipment of 2,000 self-developed ceramifiable silicone rubber pads (2mm × 4500mm × 250mm), tailored for the new energy sector. The 2mm thickness, the industry’s most widely used, balances fire resistance, insulation and cushioning.
Key features: ceramification ≥450°C, withstanding 900–1200°C flame for 30 mins (UL94 V-0), excellent dielectric strength (≥20 kV/mm) and a -60°C to +220°C working range. Applied to EV/energy storage battery packs, motors, HV/LV cabinets, etc. Contact us for samples or customization.
🚢 Shipment Update | Marine Vibration Isolation Solution Delivered
2026-03-26
We’re pleased to announce the successful shipment of 180 GSG‑200 wire rope vibration isolators, specially supplied for a marine main switchboard control cabinet project.
Built to withstand harsh marine conditions, these isolators deliver reliable vibration and shock protection, safeguarding the stability and service life of sensitive on-board electrical control systems.
We continue to provide high-performance vibration isolation solutions tailored for marine and offshore applications.
🚄 Shipment Update | Vibration Isolation for High-Speed Rail HVAC Systems
2026-03-26
We are pleased to announce the successful delivery of 768 units of Model M70265 3864VAC Unit Vibration Mounts, specially engineered for vibration and shock isolation of high-speed rail HVAC compressors.
Tailored for a 600kg HVAC unit with 2900 RPM (48Hz) excitation frequency and 75kg load per mounting point, these isolators feature a 180kg max load capacity, 2.5mm deflection at working load, and a 10.5Hz natural frequency.
Designed to minimize vibration transmission and boost system reliability, they ensure stable, safe operation in demanding railway environments, marking another milestone in providing dependable vibration control solutions for critical transportation applications.
